What’s New in The Modal Shop’s Rental Inventory?

356A19/NC

Miniature, High Frequency Low-Outgassing ICP^® Triaxial Accelerometer with TEDS

356A19/NC is a lightweight triaxial sensor capable of high frequency measurements to 13 kHz, low outgassing attached cable, and TEDS capability – ideal for structural testing, HALT/HASS and more.

Key Specs

• 4 gram mass
• ± 500 g pk measurement range
  (10 mV/g sensitivity)
• 0.6 Hz to 15 kHz (± 10%) frequency range
• Adhesive Mount
• Integral 5 ft (1.5 m) cable to 1/4-28 4-pin jack

Ideal for

• Modal and structural analysis
• Thermal vacuum environments
• Vibration testing of satellites
• Automotive ICE and EV powertrain development
• Vehicle systems NVH

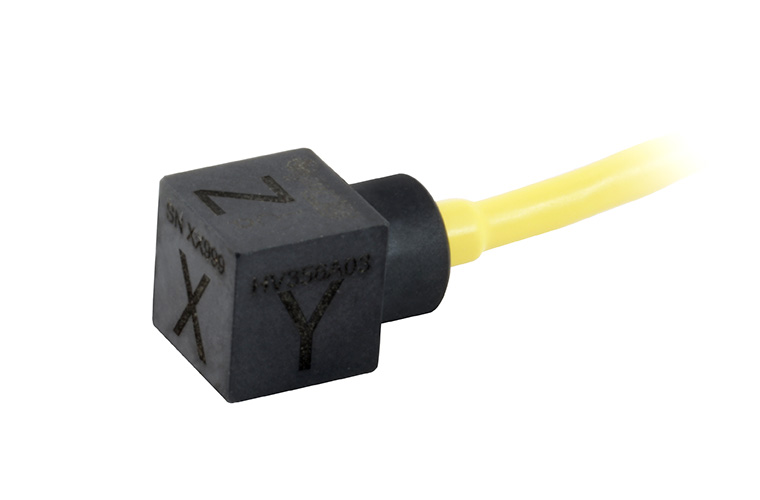

TLD356A03/NC

Ultra-miniature ICP^® Triaxial Accelerometer with TEDS

This is an upgrade to existing popular 356A03 model with the addition of TEDS functionality to reduce setup time and minimize potential errors due to manual sensitivity input.

Key Specs

• 1 gram mass
• ± 500 g pk measurement range
  (10 mV/g sensitivity)
• 2 Hz to 8 kHz (± 5%) frequency range*
• Adhesive mount
• Integral 5 ft (1.5 m) cable to 1/4-28 4-pin jack

* Varies by axis

This ultra-miniature accelerometer is ideal for

• Electronic device design validation
• Automotive systems development
• Modal and structural analysis
• ESS and HALT/HASS testing
• Space restricted installations
• Device and small component qualification testing
• General purpose vibration testing

354B04 and 354B05

Case Isolated Triaxial ICP^® Accelerometers

Case isolation reduces noise caused by high magnetic fields. Through-hole sensors install with a single fastener, allowing 360-degree rotation to align specific axes. Low outgassing and hermetically sealed for use under a vacuum.

Key Specs

• ± 500 g pk measurement range (354B04);
  ± 50 g pk measurement range (354B05)
• 10 mV/g sensitivity (354B04);
  100 mV/g sensitivity (354B05)

• 0.4 Hz to 10 kHz (± 5%) frequency range
• Titanium housing
• TEDS 1.0 Compliance
• Side 1/4-28 4-pin jack
• Includes hardware for 6-32 and M3 mounting

Case isolated accelerometers are ideal for

• Vibration measurements in the presence of electrical noise
• Flight and ground vibration testing
• Environmental Stress Screening (ESS)
• Modal analysis

HTJ356A43

Miniature, Ground Isolated, ICP^® Triaxial Accelerometer with TEDS

The "HTJ" is a variant on the popular ±500 g pk adhesive mount miniature triaxial ICP^® accelerometer with TEDS, ground isolation to reduce electrical noise and ground loops, and an extended temperature range to 325°F (163°C).

Key Specs

•  5.7 gram mass
• ± 500 g pk measurement range
  (10 mV/g sensitivity)
• 1.1 Hz to 10 kHz (± 10%) frequency range
• Adhesive mount
• Titanium housing
• Side 1/4-28 4-pin jack

Ideal for

• Modal and structural analysis
• NVH studies
• Space restricted installations
• Drop and package testing
• Small component qualification testing

356A06/NC and 356A09/NC

Ultra-miniature Triaxial Accelerometers

The very popular 1 gram mass 356A01/NC and 356A03/NC lose their attached cable and gain an 8-36 4-pin connector to mate with a breakout cable to fit any application.

Key Specs

• ± 1000 g pk measurement range (356A06/NC);
  ± 500 g pk measurement range (356A09/NC)
• 20 mV/g sensitivity (356A06/NC);
  10 mV/g sensitivity (356A09/NC)

• 2 Hz to 8 kHz (± 5%) frequency range*
• Side mini 8-36 4-pin connector

* Varies by axis

Ideal for

• NVH studies
• Space-restricted installations
• Small component qualification testing

356A04/NC and 356A05/NC

Miniature ICP^® Accelerometers with Integral Cable

High overload limit prevents sensor damage, extremely small size minimizes mass loading, and a wide frequency range allows for broader testing capabilities.

Key Specs

• 0.8 gram mass
• ± 5000 g pk measurement range (356A04/NC);
  ± 20000 g pk measurement range (356A05/NC)
• 1 mV/g sensitivity (356A04/NC);
  0.25 mV/g sensitivity (356A05/NC)

• 1.2 Hz to 10 kHz (± 5%) frequency range
• integral 5 ft (1.5 m) cable to 1/4-28 4-pin connector

Ideal for

• Environmental Stress Screening (ESS)
• Electronic board testing
• Mobile electronics drop testing
• Small component shock testing

354C02

Ring-style, Through-hole Mounted Triaxial ICP^® Accelerometer

This triaxial accelerometer allows for easy mounting with one socket head cap screw. Ground Isolated titanium housing.

Key Specs

• 15.5 gram mass
• ± 500 g pk measurement range (10 mV/g sensitivity)

• 0.5 Hz to 4 kHz (± 5%) frequency range*
• Includes 10-32 UNF-2A SHCS for mounting

* Varies by axis

Ideal for

• Any installation for which precise sensor orientation is essential
• Installations with signal noise from electrical interference or poor grounding

350B43/NC and 350B42/NC

High Shock Pyromid Triaxial ICP^® Accelerometers

Mechanically isolated, electrically filtered ICP^® accelerometer avoids electrical noise and ground loops

Key Specs

• 27 gram mass
• ±10000 g pk measurement range (350B43/NC) and
  ±50000 g pk measurement range (350B42/NC)
• 0.5 mV/g sensitivity (350B43/NC);
  0.1 mV/g sensitivity (350B42/NC)
• 0.4 Hz to 10 kHz (±1 dB) frequency range

• Side 1/4-28 4-pin jack
• Includes 1/4-28 UNF-2B mounting bolt

* Varies by axis

Ideal for

• Nearfield and far-field pyroshock
• Shaker shock
• Explosive bolts and stage separation
• Pile driver monitoring
• Body armor and helmet testing
• High-shock metal-to-metal impact
