Data Physics SignalCalc Dynamic Signal Analyzer Rental

Precision Signal Processing and Analysis

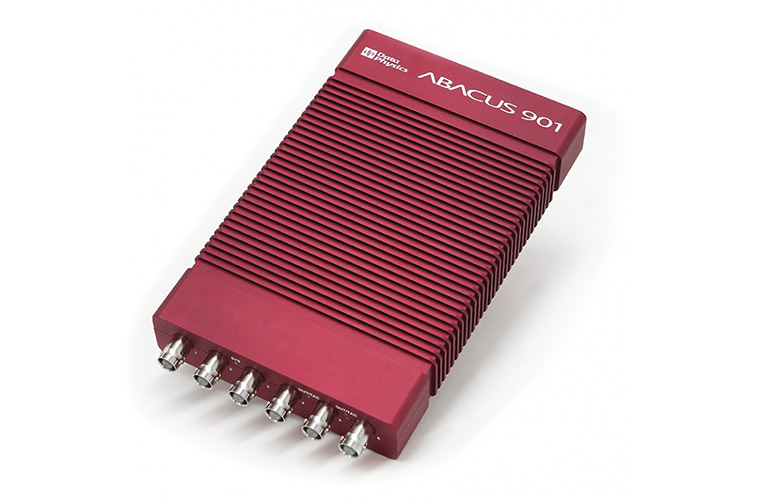

data physics 900 controllerData Physics DP900 series Analyzers scalable multi-channel front end, 100+ kHz bandwidth, 216 kSa/sec per channel, ICP power with TEDS support (Including ICP Tach Channels), and Stand-alone Operation, up to 6 channels including two reconfigurable channels (input, output, tach) per board with 24 bit analog to digital conversion with up to 150 dB dynamic range, ADC Ranges up to ± 30 V. DP906 features on-board 500 GB Time-domain Recording SSD, AC power. Additional options and configurations are available: Additional Output Channels, Rotor Dynamics/Turbo Analysis, SRS Analysis, Demodulation, Stepped Sine, MIMO, Human Vibration Filters, Drop/Shock Test, Sine Data Reduction, Balancing, Acoustic Intensity, Event Capture, and shaped PSD or Swept Sine closed loop outputs.

The 900 hardware’s powerful, real time, distributed digital signal processing engine is ideal for closed loop vibration control. Features include: Standalone real time signal processing, Up to 6 channels including two reconfigurable channels (input, output, COLA) per board, Simultaneous recording of time data to on-board storage during measurements, Up to 216 kSamples/s for 80 kHz of alias free bandwidth, 24 bit analog to digital conversion with up to 150 dB dynamic range.

The Data Physics SignalCalc Mobilyzer on Abacus is scalable AC power multi-channel front end Data Acquisition/Dynamic Signal Analyzer.

SignalCalc Mobilyzer on Abacus features include:

  • 49 kHz real time bandwidth (optional 97kHz configuration)
  • 24 bit, 150 dB dynamic range
  • Voltage, ICP/IEPE, single ended, or differential inputs
  • AC or DC coupling, ±10 V range
  • 8 to 32 input channels per chassis
  • 2-8 sources, 2-8 dedicated tachometer channels (optional)
  • Software installed on system controller included with rental

See more on the website at  www.dataphysics.com

Data Physics DP900 series Analyzers Rental Configurations
DP901-930A6-channel DP901 Single-Slot Chassis analyzer with configurable channels (4 Input Channels, 2 Input/Output/Tach Channels) , Auto-Power Spectrum, Transfer Function, Synchronous Average, Auto- & Cross-Correlation, Histogram analysis, Frequency Resolution up to 51200 lines, Frame Size up to 131072 samples, Zoom analysis, Time-domain Recording to disk, Waterfall Analysis, Multi-Measurement, Channel and Signal Math, Real Time Octave Analysis, RPM Analysis, and Real-Time Waterfall Based Order Tracking. Up to (2) ICP-Powered Tach Channels available per DP901
DP901+6CH Additional 6-Channels of input, up to 36 channels. Consult Factory for pricing over 36 Channels
DP906-930B36-Channel DP906 6-Slot Chassis Analyzer with configurable channels (24 Input Channels, 12 Input/Output/Tach Channels) Call for Software Options
Data Physics DP900 Controller Rental Configurations
DP901-960AData Physics DP901 Closed Loop Vibration Controller, 5 inputs, 1 output with Sine and Random. Includes Channel and Signal Math. (also available as 4 input, 1 output and COLA) **Up to (3) DP901-960B can be combined for additional input Channels (up to 17 Input channels).**
DP901-960BAdd on Classic Shock and SRS to DP901 Controller
DP901-960CAdd on Time-domain Recording to DP901 Controller. Includes Multi Measurement.
DP906-960DData Physics DP906 Closed Loop Vibration Controller, 35 inputs, 1 output with Sine and Random. Includes Channel and Signal Math. (also available as 34 inputs, 1 output and COLA)
SignalCalc Mobilyzer on Abacus Rental Configurations
DP730-8ABasic 8-channel analyzer with 1 output channel, Auto-Power Spectrum, Transfer Functions, Synchronous Avg, Auto- and Cross-Correlation, Histograms, High (51200 line) Resolution, Zoom Processing, Disk Throughput, and Waterfall Analysis
DP730-8B*Rotating Machinery Analysis Package includes DP730-8A plus two tachometer input channels, Real-Time Waterfall Based Order Tracking, and Filtered Order Tracking
DP730-8CAcoustic Analysis Package, includes DP730-8A plus Real Time Octave Analysis
DP730+8CHAdditional 8-Channels of input, up to 32 channels total per chassis, includes 2 tachometer inputs per 8 channels

*Tachometer only active with DP730-8B Rotating Machinery Package or upon special request.
**Notching/Limiting included with Sine or Random option**
**Sine-on-Random, Random-on-Random, Mixed mode, Sine Resonance Search and Dwell, Time Domain Replication, Advanced Notching, Force Limiting, and Larger Channel count Pricing all available on request**
