Rotational Sensing and Signal Conditioning Rental

Rotational Speed, Angular and Displacement

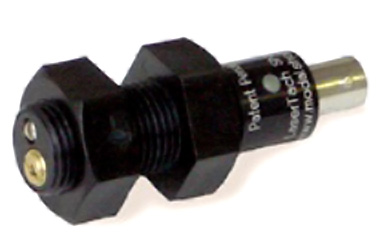

LT2 - LaserTach™

Operates with standard ICP^® sensor signal conditioning from 2 mA to 20 mA constant current source
Easy to install - 20 in (51 cm) range in a standard bolt package offers additional flexibility during installation
Continuous laser operation for jitter-free RPM measurements
One pulse per revolution eliminates need to oversample all channels for a high frequency tach signal
Simplifies cable management for dynamic testing of rotating equipment
Narrowband optical filter for enhanced outdoor performance
Full specs from manufacturer

Rental Includes

LT2 ICP laser tachometer with mounting accessories (bracket, nuts)
LT-Tape - Retroreflective Tape, 5x 1.5” adhesive pieces

LaserTach™

Non-contact rotational speed measurements
Measurements in excess of 30000 RPM
Usable distance up to 20" away
5/8-18 mounting thread
Operates on 3-20 mA ICP^® power with standard BNC connector (non-TTL output)

Rental Includes

PD-0727 - L bracket for mounting
LT-Tape - Retroreflective Tape, 5x 1.5” adhesive pieces

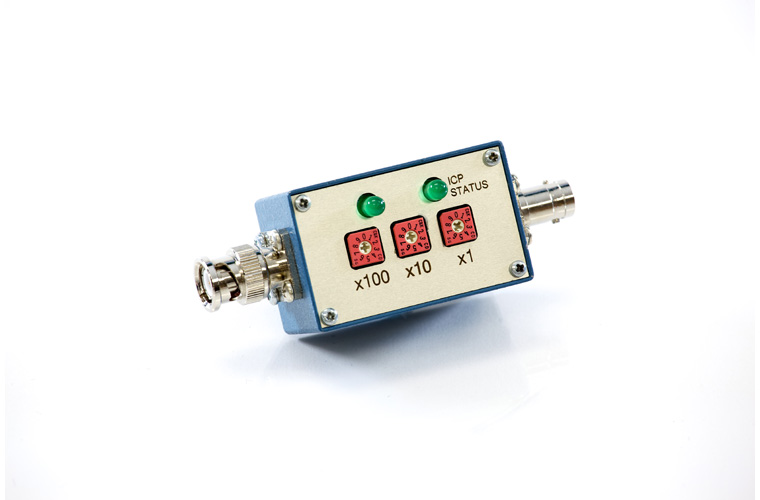

PulseDriver™

Conditions pulse signals from an optical or magnetic pickup for input into a standard ICP measurement channel
Eliminates need to oversample all channels due to high frequency tachometer signal
Can divide frequency unit by up to 255
Standard BNC connectors
Full specs from manufacturer

TSC002 and TSC004

Structural Dynalysis Torsional Signal Conditioner (2 or 4 channel options). Conditions output from a shaft encoder, mag pickup or Hall Effect sensor for torsional vibration measurements.

Full specs from manufacturer
